The single rod vibrating level switch also adopts the tuning fork principle, but there are no issues with clamping or installation direction that exist with tuning forks. The length of the vibrating rod can be customized according to special requirements.

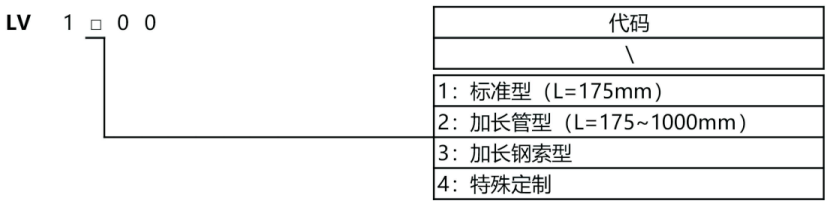

Selection Table
Note: There are two power supply options available: DC24V and AC220V. Please specify when ordering.
② Tube length<350mm，，， Using 1-inch PT thread; Tube length ≥ 350mm, using 1.5-inch PT thread.

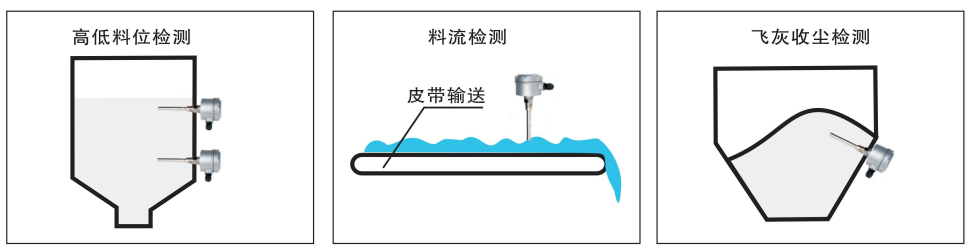

Application Diagram

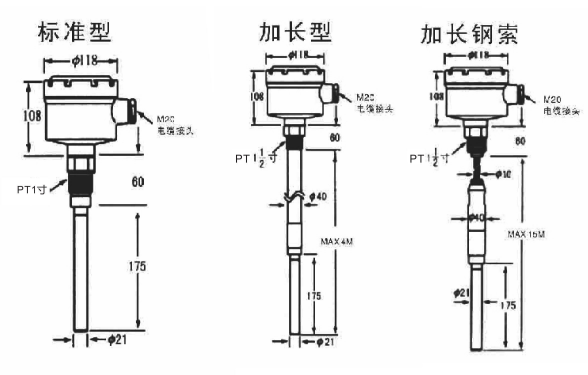

Dimensions (unit: mm)
Feature
When the medium is in contact with the sensing rod and has damping, provide delayed output
High and low fault insurance mode
Adjustable sensitivity, capable of detecting extremely low-density powders
The shell protection level reaches IP65 and can be installed outdoors
Easy to use, sturdy and durable
No calibration required after installation
Can withstand temperatures up to 85 ℃
Application field
Material flow detection of conveying equipment
Solid liquid interface detection
Powder and particle level detection
Dust removal and recycling ash measurement
