The blades of the resistance rotary level switch are connected to the clutch through the transmission shaft. When there is no contact with the material, the motor maintains normal operation. When the blades come into contact with the material, the motor stops rotating, and the mechanism outputs a contact signal to measure the level height.

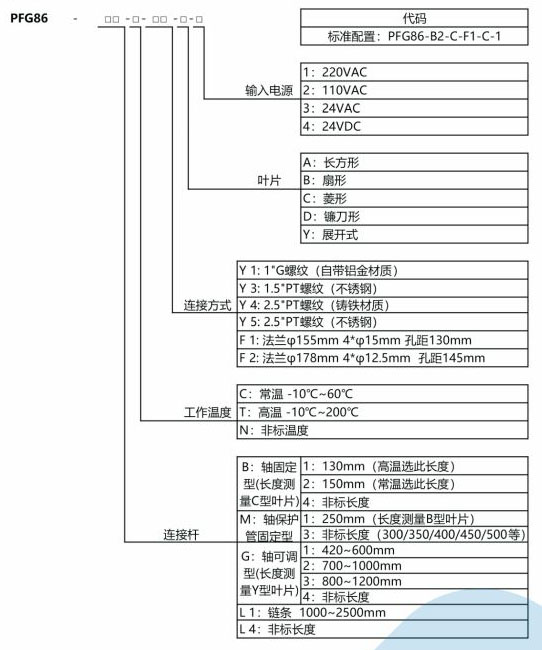

Selection Table
Note: The connecting rod has been selected as G (axis adjustable type), while the blade can only be selected as Y (unfolded type).
Feature
Imported high-quality motors, reliable operation
Four levels of sensitivity adjustable, wide range of applications
Clutch device protects motor
Double layer shaft seal protection, with a protection level of IP65
All stainless steel rotating shaft and blades, never rusting
Optional working power supply: 110VAC, 220VAC, DC24V
Application field
Position detection of bulk solid materials:
Grains, feed, sawdust
Plastic, sand and gravel, granular materials
Rubber, sintered materials, raw cement, clinker

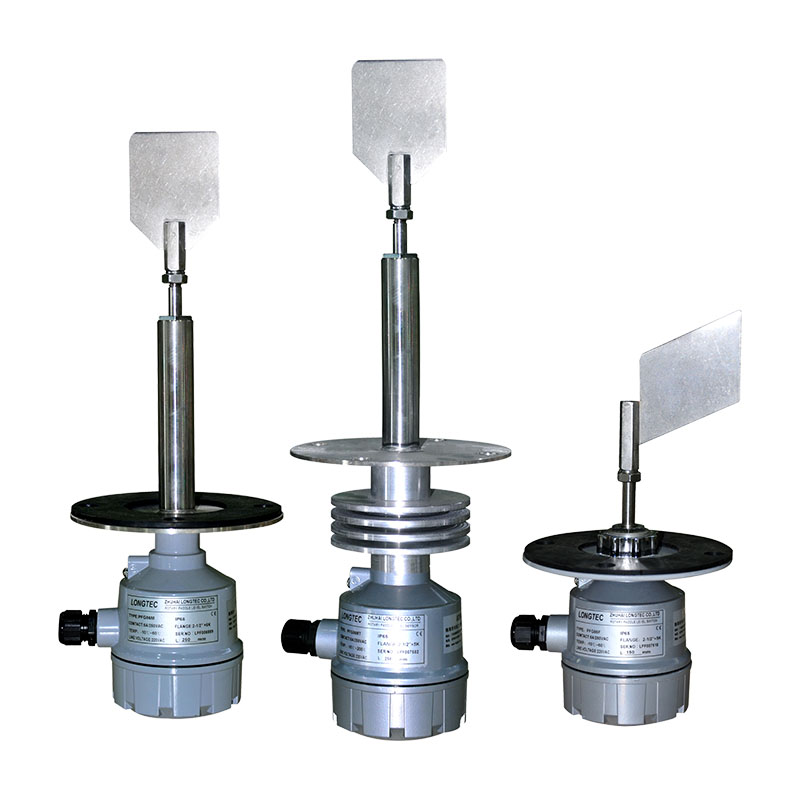

Optional models
PFG86Mini: Miniature
PFG86: Standard threaded connection
PFG86F: Standard flange connection
PFG86M: Shaft protection tube type
PFG86G: Adjustable shaft length type
PFG86FT: High temperature flange type
PFG86MT: High temperature shaft protection tube type
PFG86GT: High temperature shaft length adjustable type

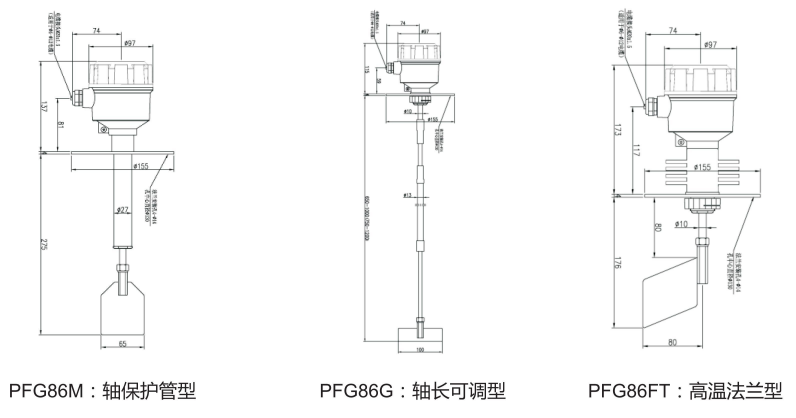

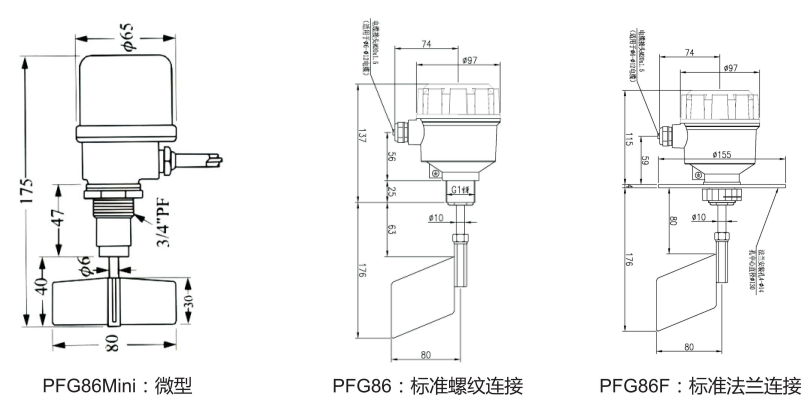

Dimensions (unit: mm)
